Optimize Your Material Flow : High-Performance Heavy-Duty Industrial Lump Breakers

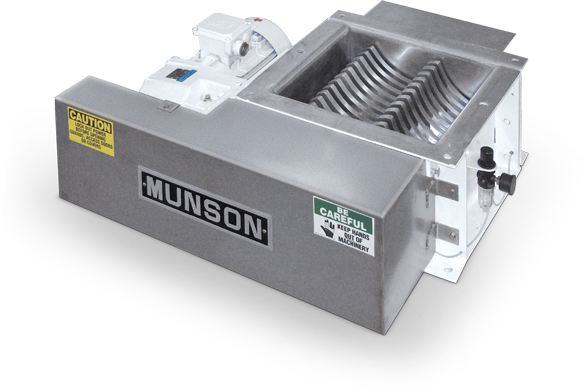

De-Clumper™ Lump Breaker is engineered to transform compacted, lumpy, and agglomerated materials back into their original particle size and flowability. Agglomeration can stall your entire production line. It is designed to eliminate flow issues by reducing compacted materials back to their original, free-flowing state.
Designed for versatility, it functions as both a light-duty crusher and an ultra-heavy-duty de-clumper, making it an essential bridge between your storage (silos, bags) and your downstream process. Whether your material comes from silos, bulk bags, or sacks, this system ensures it is perfectly prepared for downstream processing or conveying without generating excessive heat.
Detailed Technical Features
- Efficiency: Designed for rapid changeovers and minimal downtime, maximizing your facility’s productivity.
- Cool & Gentle Processing: By operating at low RPM, the machine ensures minimal heat generation. This is critical for heat-sensitive materials like sugars, resins, or certain chemicals that might melt or degrade.
- Versatile Application: From frozen coal and cement to delicate pharmaceutical powders and brown sugar, the system adapts to your specific material density and moisture content.
- Precision Sizing with Bed Screens: Customizable bed screens (from 0.8 mm to 63.5 mm) ensure you get the exact particle size you need. To ensure consistent output, material only exits the unit once it reaches the size determined by the bed screen.
- Superior Drive System: Unlike fragile belt drives that slip or gears that can snap, our units utilize self-lubricating chain and sprocket drives. This design handles extreme high-torque loads with maximum durability.
- Intelligent Rotor Technology: Depending on the scale of your operation, we offer single or dual-rotor configurations. In larger units, dual rotors force lumps against each other, while smaller units use a stationary comb. This ensures material is broken down efficiently without “overworking” or damaging the product. Available in 1 to 4 rotor models, with power options ranging from 3 hp to 20+ hp redundant dual drives.
- Superior Durability: Features a rugged housing with AR-235 abrasion-resistant steel hard-facing welded breaking heads and heavy-duty pillow block bearings.
- Replaceable Core: The entire one-piece lump-breaking weldment is replaceable as a single unit, significantly extending the total lifespan of your investment.
- Space-Saving Design: The low-profile design and matching inlet/outlet flanges mean you can “drop” this unit into your existing line without major structural changes and it allows for easy inline installation between existing equipment, even in restricted spaces.
- Zero-Downtime Maintenance: External lubrication points mean you never have to remove safety guards for routine greasing. Optional side-access doors allow screens to be inspected or changed in minutes without tools.
- Operational Security: Dual-drive models can operate independently. If one motor fails, the other prevents material from backing up, saving you from costly emergency shutdowns.
Fully Customizable Options
- Sanitary Finishes:: Available in #304 or #316 stainless steel with food-grade or pharmaceutical finishes to meet strict hygiene requirements. Available in #304 or #316 stainless steel, polished to meet strict Food, Dairy, or Pharmaceutical standards.
- Mobile Solutions: Can be equipped with custom hoppers, support legs, and casters for easy movement within your facility.
- Automation Ready: Optional rotation sensors and explosion-proof motors allow for seamless integration into automated PLC systems.
Applications
Ideal for a wide range of industries, including food, pharmaceutical, chemical, and construction. It effectively processes:
- Sugar, salts, and carbonates
- Cement, gypsum, and fertilizers
- Chemical powders, resins, and polymers
- Detergents and pharmaceutical flakes
Why Choose De-Clumper™ Lump Breaker?
Lump breakers are engineered for heavy-duty performance and long-term reliability. Unlike standard models that rely on fragile belt drives or gears, they utilize high-torque, self-lubricating chain and sprocket drives that eliminate slippage and prevent mechanical failure under heavy loads. For larger operations, their dual-drive system provides a critical safety net; the motors can operate independently, offering built-in redundancy that prevents material backups and costly production halts in the event of a power issue.
Designed with the reality of the factory floor in mind, this unit features an ultra-low-profile construction that fits into tight spaces between existing equipment without requiring major modifications. They prioritize your uptime by simplifying maintenance: external lubrication points allow for routine servicing without removing safety guards, and optional side-access screens enable tool-free cleaning or size changeovers in minutes. This combination of a compact footprint and “maintenance-first” engineering ensures maximum productivity with minimum manual intervention.

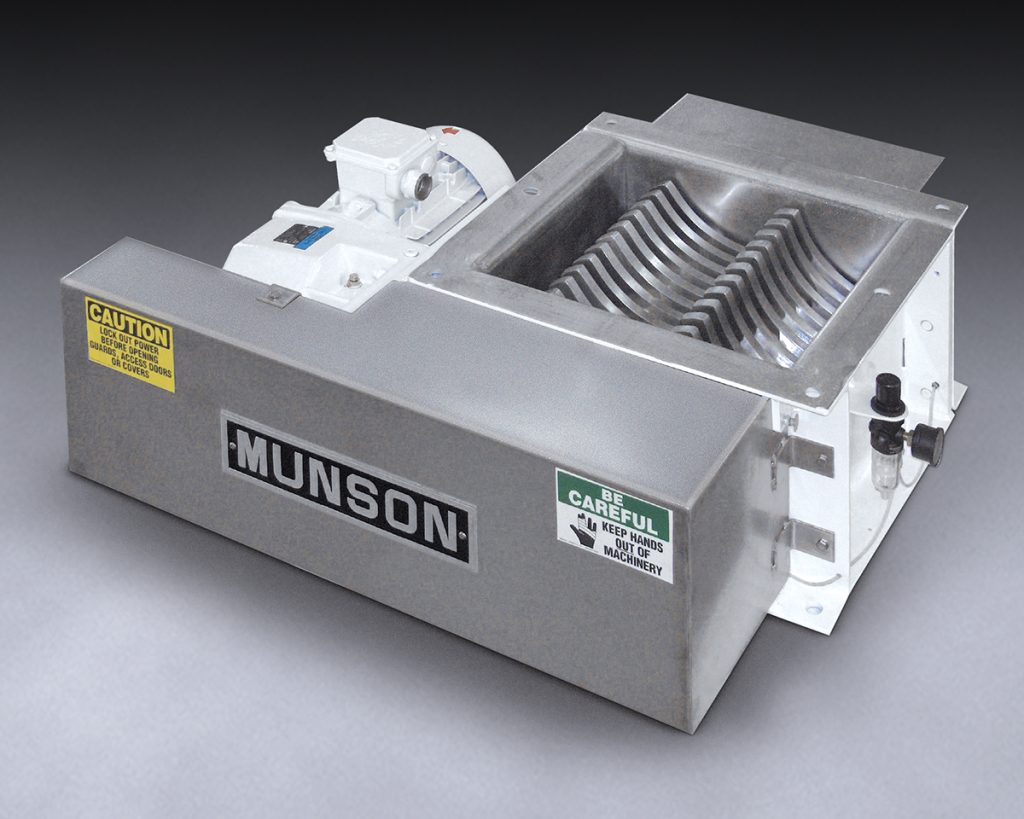

De-Clumper™ Model RDC-1515-SS
Built with high-grade #304 stainless steel, this model is engineered to meet strict sanitary standards, ensuring maximum hygiene and corrosion resistance for food and pharmaceutical applications. Designed for maximum efficiency with side-removable bedscreens, allowing for rapid and thorough sanitizing without the need to disconnect the unit from adjacent equipment, significantly reducing downtime.

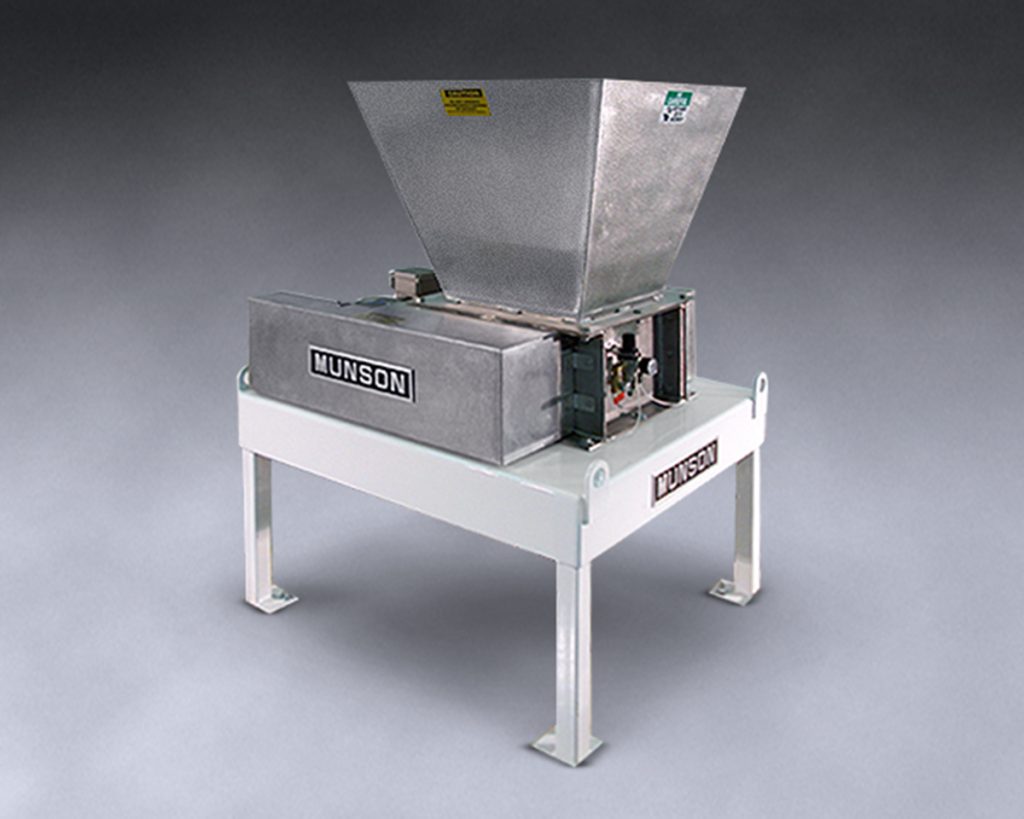

Rotary De-Clumper™ Model RDC-1515-SS
Designed for stand-alone operation, this configuration includes a sturdy support base and an integrated infeed hopper, providing a complete, ready-to-use solution for efficient material processing.

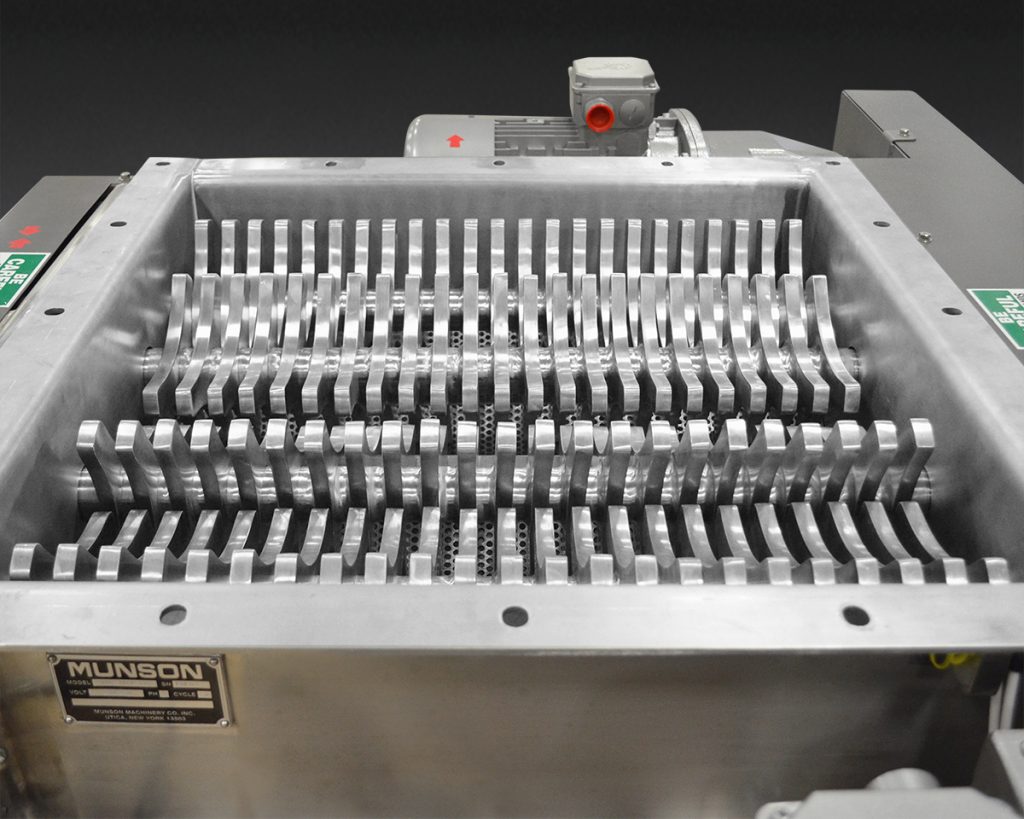

De-Clumper™ Model RDC-3030-SS
This model utilizes a four-rotor system with heavy-duty, three-point breaking heads to efficiently process bulk materials. Rotating above a precision curved bedscreen, it offers adjustable particle sizing from 0.8 mm to 63.5 mm (1/32 in. to 2-1/2 in.) , ensuring consistent flow and perfect results for any application.

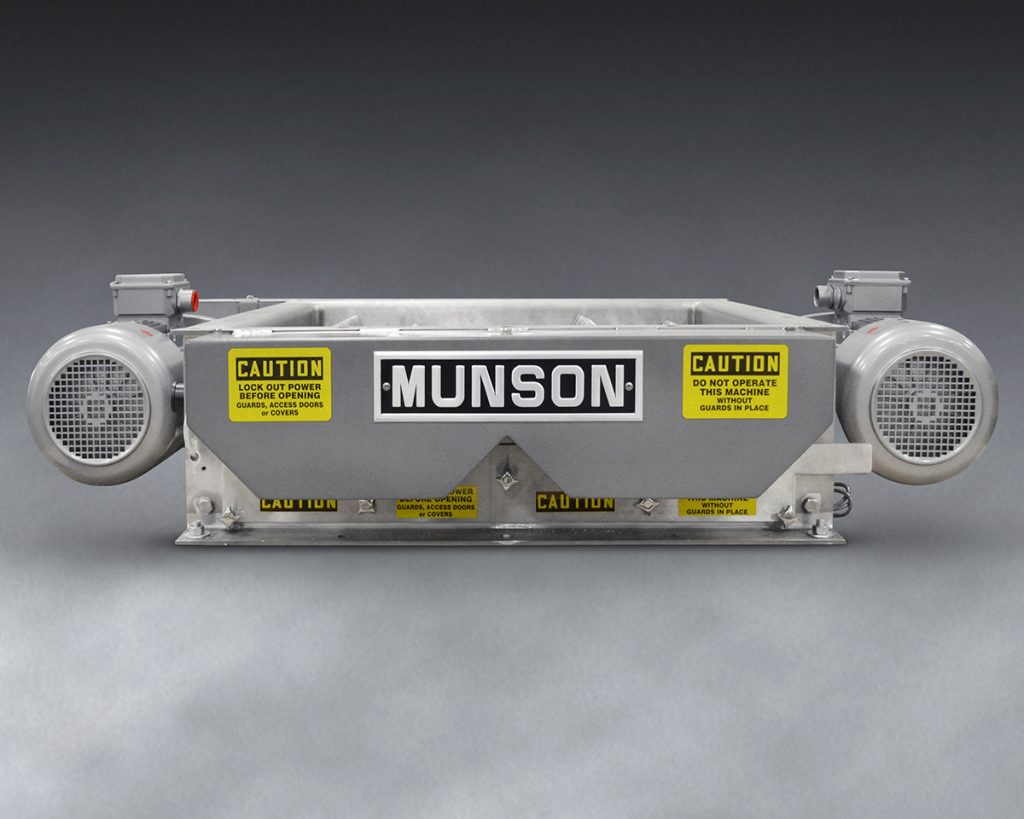

Rotary De-Clumper™ Model RDC-3030-SS
Equipped with independent dual drives, this model delivers high-capacity power with built-in redundancy for uninterrupted production. The design features a tool-free side plate and screen removal system, enabling rapid cleaning and effortless maintenance.

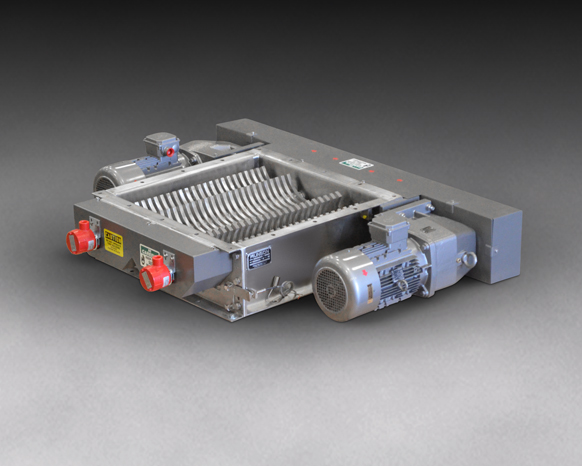

De-Clumper™ Dual Drive Model
Featuring an ultra-compact design, this unit fits into gaps as small as 279 mm (11 in.) for easy inline installation. It includes interlocked, side-removal bedscreens that allow for rapid, tool-free inspection and cleaning.

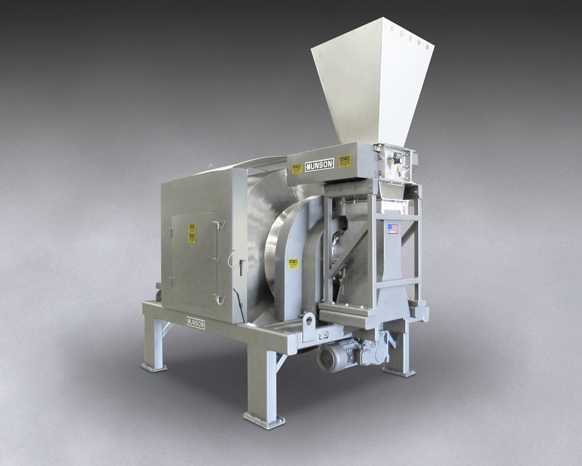

De-Clumper™ on top of a Rotary Batch Mixer
Engineered for chemical, food, and pharmaceutical bulk materials, this unit efficiently reduces agglomerates before discharging them into a Rotary Batch Mixer. This seamless integration ensures gentle, perfectly uniform blending in just 1 to 3 minutes.
Special Cake Breaker Model RDC-1515-SS
Engineered to process and disintegrate filter cakes and compacted materials.

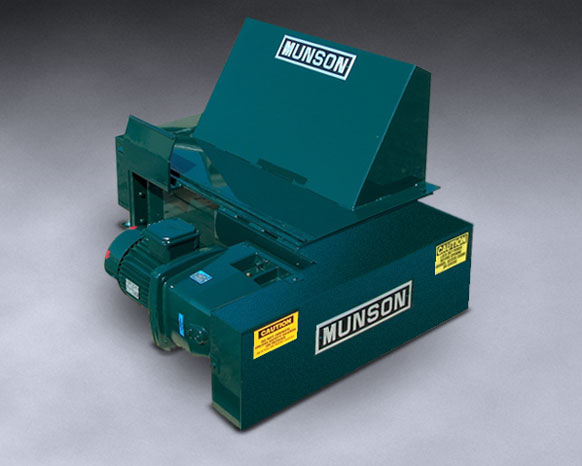

Rotary De-Clumper™ Model RDC-15X30-AR
Equipped with a specialized slot feed chute.
Rotary De-Clumper™ Model RDC-15X15-MS
Constructed with robust mild steel.
Scalable Power Options
Lump Breakers are available with a range of drive configurations to suit your capacity needs, from single 3 hp (2.2 kW) units to heavy-duty 20+ hp (14.9 kW) dual redundant drives for maximum power and operational security.
