Professional & Precision Size Reduction
Rotary Knife Cutter is engineered to transform various food products, grains, and industrial materials into precisely controlled sizes. Unlike traditional mills that rely on heavy impact, this system utilizes a high-shear cutting action to deliver clean, accurate results with minimal dust or fines.
Whether you are processing spices, roots, corn, or plastic pellets, the five-blade rotor assembly and adjustable stationary bed knives work together to ensure uniform particle quality. The material is processed until it reaches the desired size to pass through the large-area, semi-cylindrical screen, ensuring high throughput and consistent performance.
Key Technical Features:
- Precision Cutting: Achieve uniform particle sizes with virtually no dust, preserving the integrity of your material. High-shear, low-impact action produces clean-cut particles from 1.2 mm to 50.8 mm.
- High Efficiency: The 320° screen exposure provides significantly higher throughput rates compared to conventional mills. The high-mass rotor assembly utilizes rotational inertia to maximize output while minimizing power consumption.
- Customizable Solutions: Multiple screen sizes and material options (SS304/SS316) ensure the machine fits perfectly into your specific production line. Available in carbon steel or stainless steel finishes to meet both industrial and strict sanitary requirements.
- Easy Maintenance: Dual-hinged “clamshell” doors and housings allow for rapid screen changes and thorough sanitization between production runs. Designed for heavy-duty 24/7 operation with easy-access components that reduce cleaning and maintenance time. Equipped with hardened tool steel knives that can be re-sharpened and reversed for extended service life.
Typical Applications:
- Food Industry: Spices, grains, tea, dried vegetables, nuts, and roots.
- Agriculture: Animal feed, corn, and cereal processing.
- Industrial: Plastic pellets, wood chips, bark, and more.
Why Choose Rotary Knife Cutter?
This technology focuses on protecting your product’s integrity. By utilizing a high-shear, low-impact cutting method, it eliminates the common problem of dust and waste, ensuring you get the highest quality output. The heavy-duty rotor assembly also leverages rotational inertia to deliver superior production rates while significantly reducing your energy consumption.
Furthermore, it prioritizes your operational uptime with a user-friendly design. The “clamshell” access doors and quick-change screens allow for thorough sanitization and fast transitions between different materials. Whether you are in the food, agricultural, or chemical industry, this cutter offers a reliable, low-maintenance solution that scales with your production needs.

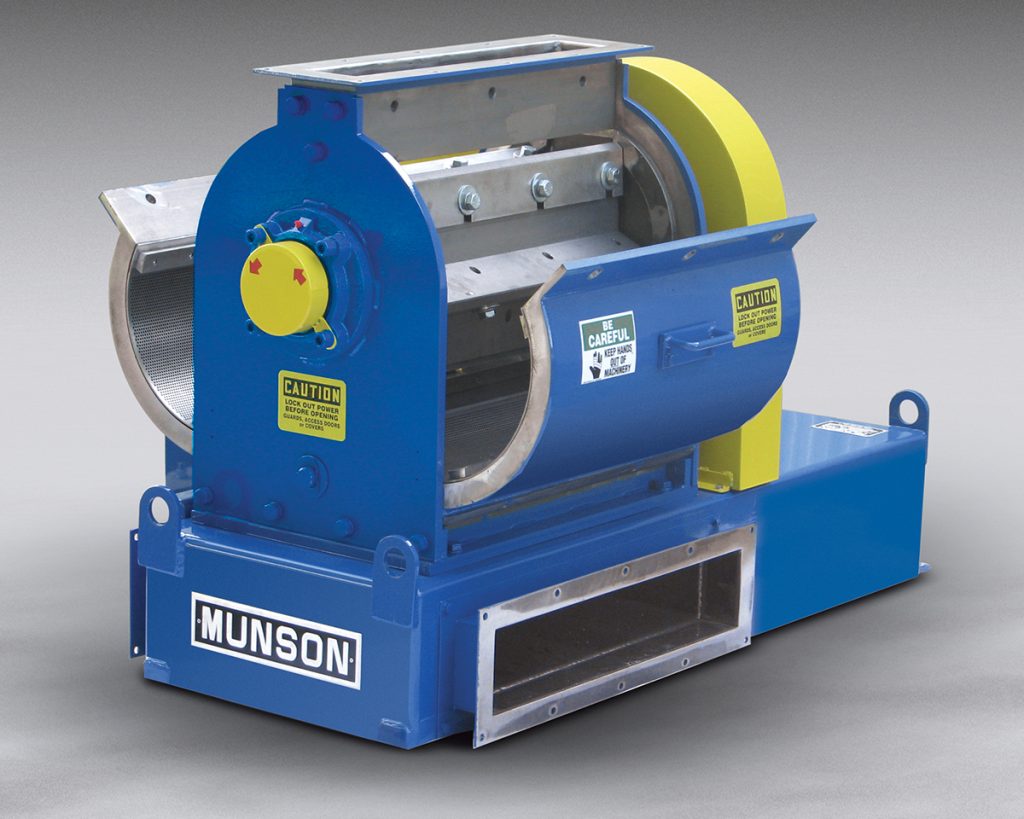

Rotary Knife Cutter Carbon Steel Model-4-MS
Features a rugged carbon steel housing for vibration-free operation and long-term durability. Equipped with sealed flange-block bearings for rotor stability and a custom flanged transition designed for efficient pneumatic material handling.

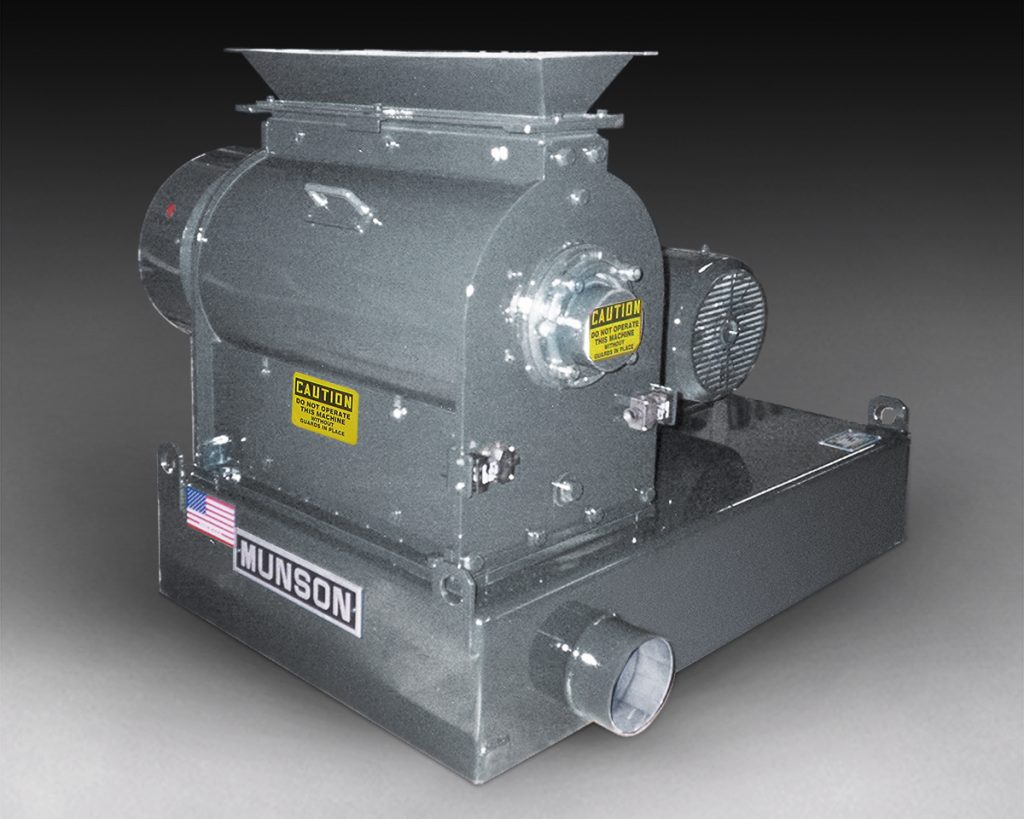

Rotary Knife Cutter Carbon Steel Model-4-MS
Including a standard pneumatic transition for optimized collection and process flow.

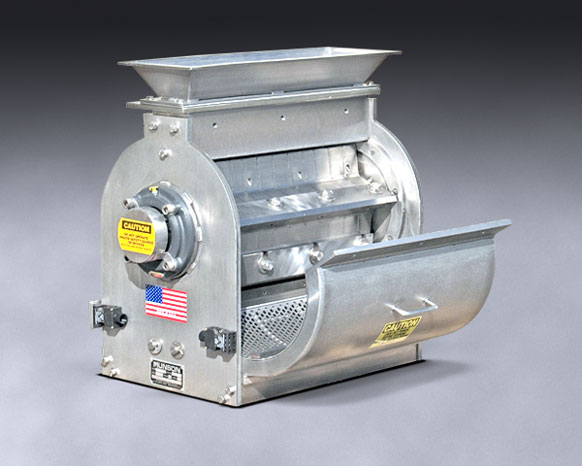

Rotary Knife Cutter Sanitary Stainless Steel Model
Designed for hygiene-sensitive processes, this cutter features large dual-sided clamshell doors. This design ensures thorough wash-downs and easy cleaning between batches, effectively eliminating the risk of cross-contamination.

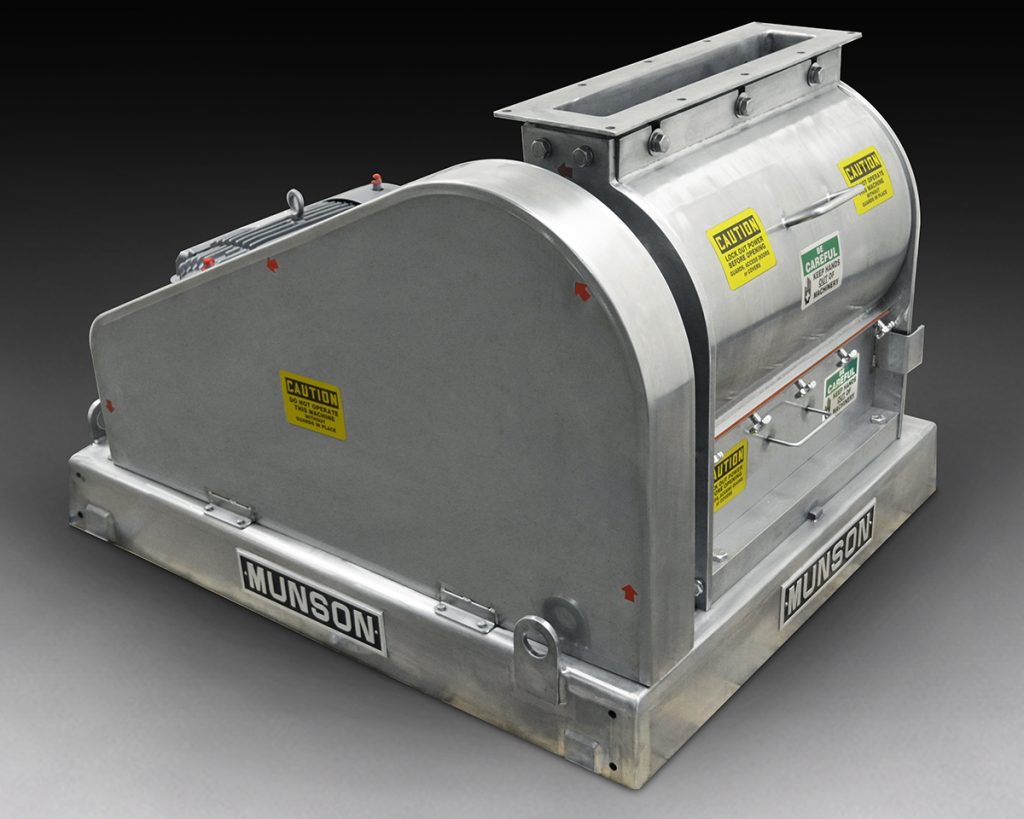

Rotary Knife Cutter Sanitary Stainless Steel Model-4-SS
Features an all-stainless-steel construction, shown here with its standard drive configuration for high-performance operation.

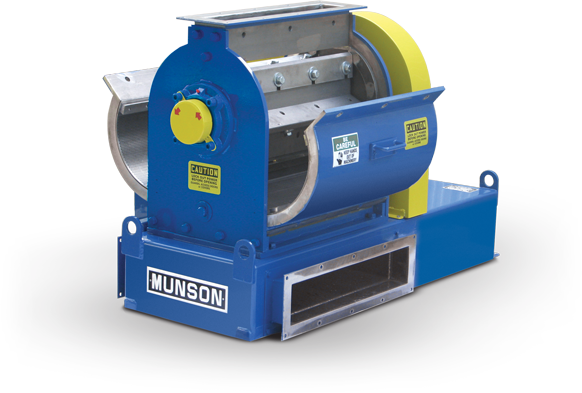

Rotary Knife Cutter Model-4
Equipped with a bottom-mounted pneumatic pick-up for efficient material discharge.

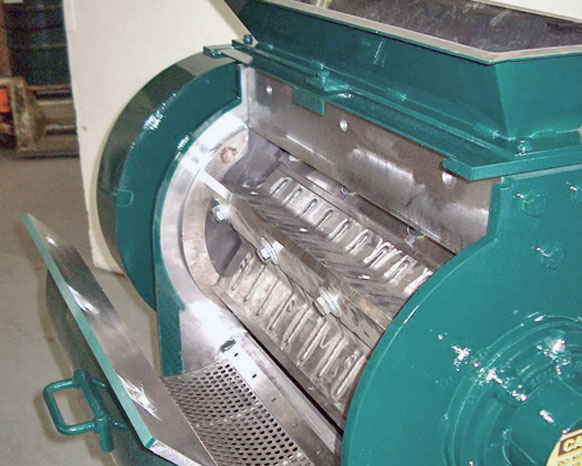

Hinged Door
The solid-mass star rotor assembly is accessible via a hinged door, providing the high inertia required for efficient and powerful cutting.

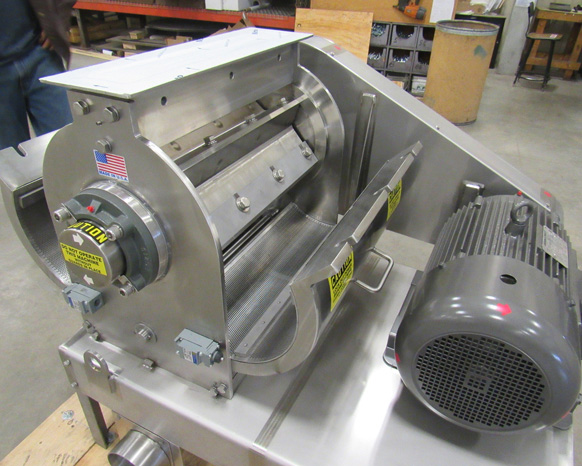

Hinged Doors
Featuring safety-interlocked clamshell doors on both sides, this design provides full interior access for rapid cleaning and thorough sanitization between production cycles.

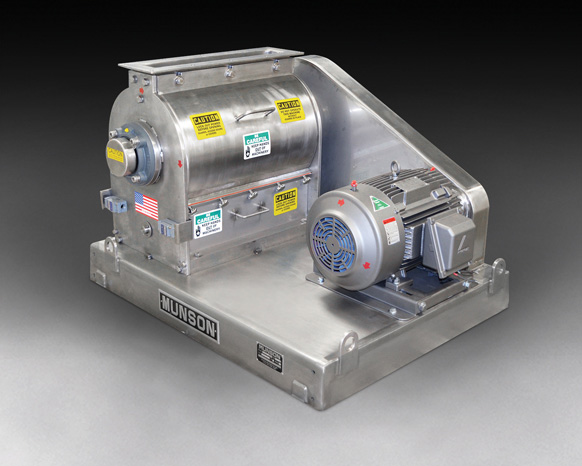

Steel Housing
Engineered with heavy-gauge steel, our Rotary Knife Cutter housings ensure stable and vibration-free operation during heavy-duty processing.
Rotor Assembly
Supported by sealed flange-block bearings on a heavy-gauge machined housing, the rotor assembly is driven by a high-performance, fully guarded V-belt system. Materials are gravity-fed through the top infeed hopper directly into the star-shaped rotor knives. Once reduced to the desired size, particles pass through perforated screens ranging from 1.2 to 50.8 mm, ensuring a wide variety of precise end-product dimensions.
