Mobile Big Bag Discharging and Bulk Truck Loading System
Bulk solids in the shape of powders and pellets are stored and moved around in many industrial applications. They are stored in bags, bulk bins, and godowns and have to be moved around by using trucks or other bulk carriers. Loading and discharging these solids is a major logistic issue and has to be managed. Our systems give you a strong capability to move around such materials efficiently, safely, and economically due to their excellent design and robust construction. Check out these systems and select the one best suited to your application.
3 Different Systems are available;
Fast, Robust and Economical
Look at our Mobile Bulk Truck loading processes. Our unique technology guaranties quick emptying of bags and robust, automatic and dust-free loading in the truck .
That is why our Mobile Truck loading systems are being used all over the world with very high client satisfaction.
They are not only efficient, easy to maintain and above all economical. If your applications require Big bag discharging and loading look at our models and we are sure that you will find one that exactly suits your needs.
Our System consists of a mobile platform, big bag discharger, loading screw, telescopic loading chute and dust collector. System can be towed by a forklift and screw conveyor can be brought to horizontal position for easier and safe transport.
There are many options to choose from. Select the model that meets your requirements completely.
Bulk Truck Loading System in Transport Mode
The system is shown with the screw conveyor in a horizontal position, optimized for mobility. Towable by forklift or manpower, its compact design allows it to fit easily into sea freight containers for efficient transportation.
Bulk Truck Loading System in Ready Mode
The system is depicted with the screw conveyor inclined, prepared for operation. Four screw jacks on the main chassis are extended to stabilize and rigidify the platform during loading, ensuring safe and reliable performance.

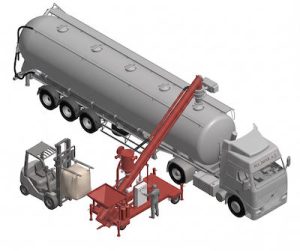

Bulk Truck Loading System in Operation Mode
The system operates with the telescopic chute extended, securely seated on the tanker inlet. Big bags are unloaded using a forklift, with material flowing dust-free into the truck via the screw conveyor and chute.
Bulk Truck Loading System for Mining Industry in Operation Mode
Tailored for rugged mining environments, the system is presented in its operational configuration, ready to discharge big bags and load bulk trucks efficiently. The integrated dust collector minimizes emissions, ensuring safety and regulatory compliance.
Bulk Truck Loading System for Mining Industry in Transport Mode
Tailored for mining applications, the system is displayed in its compact transport configuration. The horizontal screw conveyor and towable design enable easy relocation across mining sites or shipping via containers.

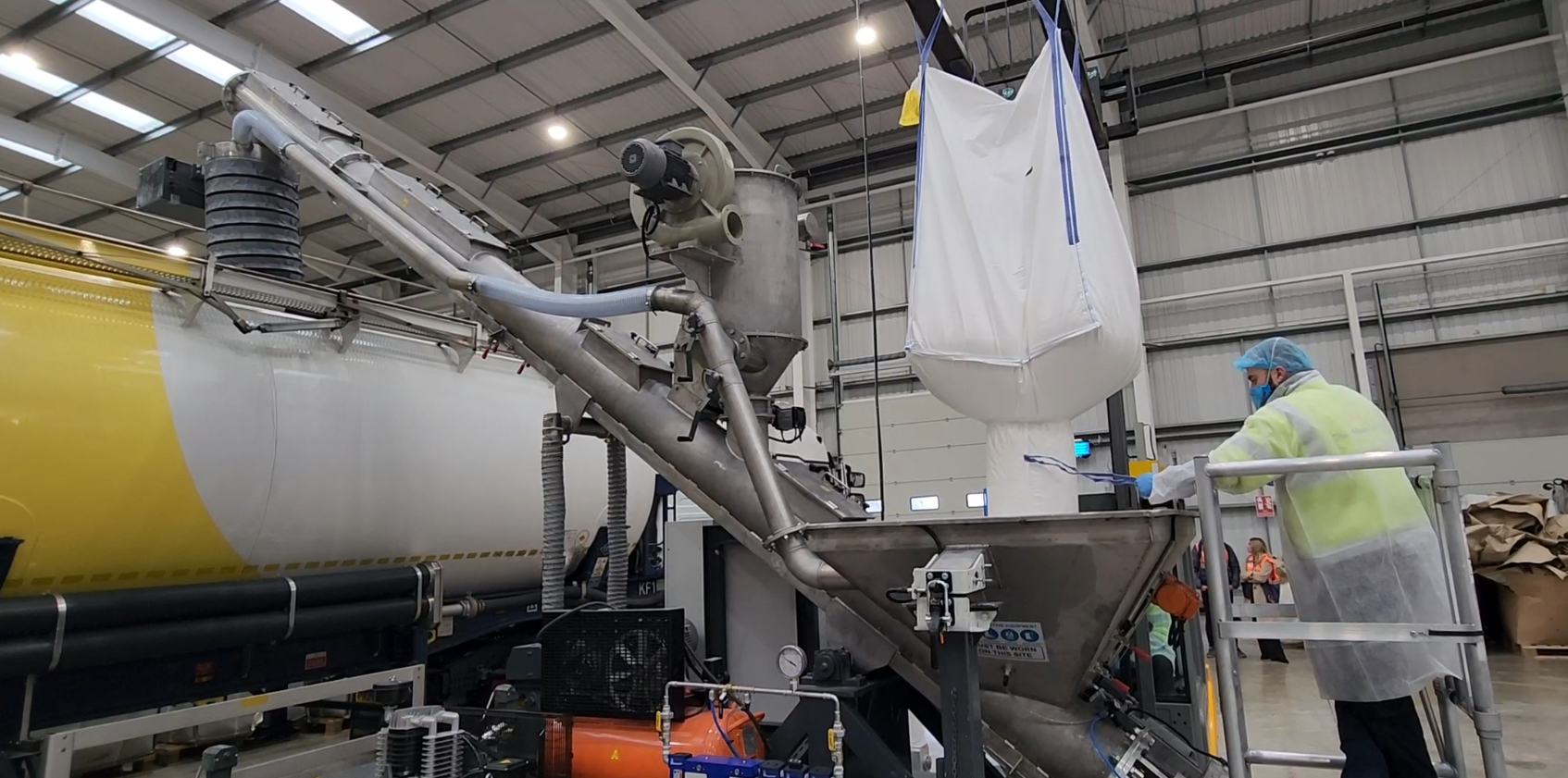

Bulk Truck Loading System for Food Applications
Featuring product-contact parts made of stainless steel, this system is ideal for food-grade materials. The image, captured at a sugar handling facility, highlights its hygienic design and dust-controlled operation.
Truck Filling Operation with Dust Collection
During truck filling, the integrated dust collector captures emissions from the big bag unloading hopper. This ensures a clean, safe environment throughout the material transfer process.
Truck Filling Operation with Sealed Telescopic Chute
The telescopic chute firmly seats on the tanker inlet, preventing dust escape. Connected to the dust collector, it ensures dust-free loading and retracts automatically, guided by a level sensor, once the tanker is full.
Custom-Colored Bulk Truck Loading System
This image showcases a system painted in a custom color, available upon request. The design retains full functionality while offering aesthetic flexibility to meet client preferences.
Polimak Vacuum Conveying and Bulk Truck Loading System
This innovative system features a suction hose for collecting material from stockpiles or processing lines, paired with a screw conveyor for truck loading. It offers versatile, dust-free material handling.
Bulk Truck Loading System for Mining Industry in Transport Mode
Tailored for mining applications, the system is displayed in its compact transport configuration. The horizontal screw conveyor and towable design enable easy relocation across mining sites or shipping via containers.
Vacuum Conveying System in Action
An operator uses the suction hose to gather material from a stockpile, loading it into a truck via the screw conveyor. The high-capacity system ensures rapid, dust-free transfer with minimal environmental impact.
Advantages of our Bulk Loading Systems
Mobile: Wheeled mobile chassis that allows easy transportation of the system to the desired location.
Functional: Compact form can be moved easily from one place to another.
Efficient: The system can transfer large quantities of material in a short time.
Easy to Operate: Very few operators are necessary to handle both discharging and loading trucks/tankers at the same time.
Remote Control Available: Operator can control the whole operation with a remote controller.
Reliable: It can work a long time without any need for maintenance, which enables you to save money.
Suitable for Uneven Ground: The screw jack leveling legs can be adjusted to any place to place the system.
Flexible: The loading bellow can be extended and retracted concerning the height of the bulk truck.
Environmental Friendly: Built-in dust collection system captures dust and prevents material loss.
Robust Design: The system will work for continuous long hours without failure.
Handled materials with Bulk Truck Loading System
Materials in powder and granule form like cement, fly ash, mining minerals, calcium carbonate, pvc, plastic pellets, plastic powders, polyethylene, ceramic powders,alumina, bentonite, bauxite, coal, cement clinker, gypsium, perlite, kaolin, limestone, marble powder, soda ash, quartz, urea, sodium suplhate, wheat, flour, animal feed, seed, corn, rice, sugar, salt and similar powdered or granular dry bulk solids.
