Founded in 1823, Munson Machinery has established itself as a world-leading manufacturer of industrial mixers, blenders, and size reduction equipment for bulk materials.
As the official EU representative, Polimak is proud to bring Munson’s unparalleled engineering, robust construction, and high-performance solutions directly to European manufacturers. Whether your facility processes fine powders, coarse aggregates, highly abrasive minerals, heavy industrial waste, or sensitive pharmaceutical and food products, our extensive equipment portfolio is engineered to meet your most demanding specifications. From small laboratory mini-mixers to massive continuous production lines, Polimak provides the EU market with Munson’s custom-built machinery, helping you optimize cycle times, reduce energy consumption, and achieve highly uniform blends in every batch.
Overview of Munson Machinery Products
Munson Machinery provides an incredibly broad and highly specialized range of equipment, uniquely positioning them as the only manufacturer to offer all eight types of mixing and blending machines. The product lines are separated into distinct categories: Mixing & Blending Equipment (both batch and continuous), Size Reduction Equipment (for large bulk, coarse, and fine reduction), and Separation Equipment (for liquid/solid and solid/solid separation).
Munson equipment is available in carbon steel, abrasion-resistant steel, and AISI 304/316 stainless steel constructed to strict food-grade and pharmaceutical sanitary standard. With Polimak’s representation, European industries – ranging from nutraceuticals, spices, and cosmetics to cement, plastics, and sludge recovery – can leverage Munson’s durability and superior engineering for decades of low-maintenance operation.
1. Mixing & Blending Equipment (Batch)
Rotary Batch Mixers
Capacities: 5 to 600 cubic feet. Operates efficiently at fill volumes from 100% down to 5%. Operates efficiently from 100% down to 5% of capacity.
• Rotary Batch Mini Mixers
Available for small production and laboratory applications (0.25 to 15 cu ft). Click for Details…
• Rotary Glass Batchers
Built with replaceable wear plates for extremely abrasive materials like refractories and glass. Click for Details…
Ribbon, Paddle, and Plow Blenders
These heavy-duty horizontal blenders feature a stationary U-shaped vessel and a central flanged shaft supporting ribbon, paddle, or plow agitators. They force agitators through stationary material, making them incredibly effective for blending dry solids with other solids, or with liquids to produce pastes and slurries in 5 to 10 minutes. Click for Details…
Capacities: 1 to 1,150 cubic feet.
• Cylindrical Plow Blenders
Offered for high-intensity batch blending, rotating three to five times faster than trough-style blenders to intersperse difficult materials. Click for Details…

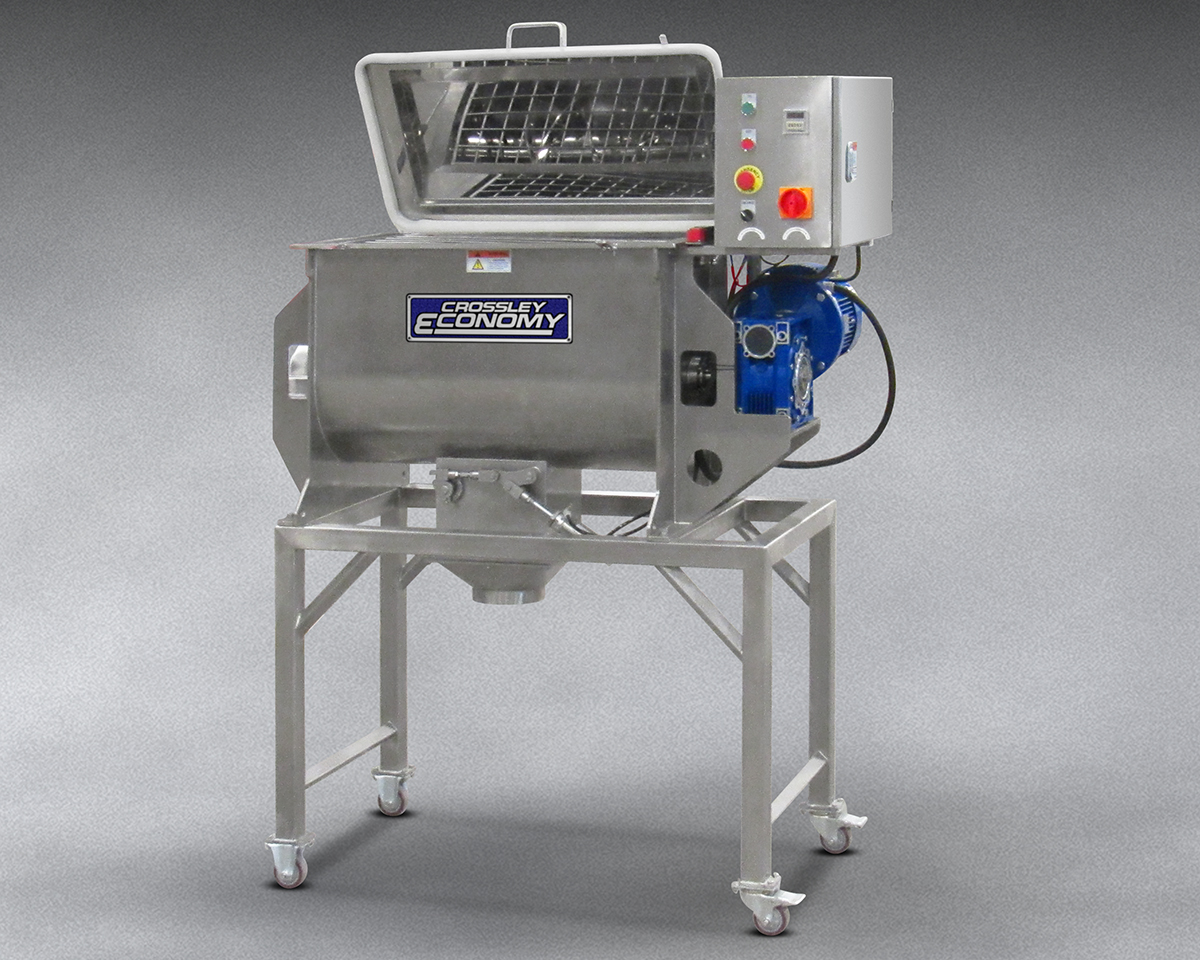

• CROSSLEY ECONOMY™ Ribbon Blenders
Line features standard, non-customized stainless steel ribbon blenders in capacities from 3.53 to 105.94 cu ft for fast shipment. Click for Details…

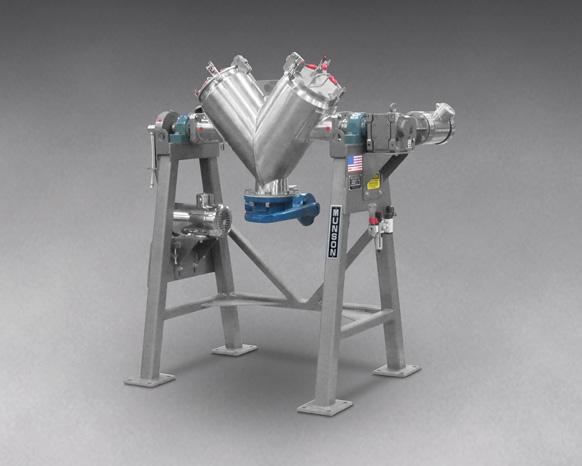

Vee Cone Blenders
Capacities: 0.25 to 200 cubic feet. Optional liquid dispersion intensifier bars can be added to reduce soft agglomerates or distribute liquids.
Fluidized Bed Mixers
Engineered for speed, these mixers use twin, counter-rotating shafts with paddles to sweep low- to medium-density bulk materials upward into a fluidized, airborne zone. They achieve highly uniform blends in 10 seconds to two minutes with insignificant heat generation and zero degradation of fragile particles.
Capacities: 0.21 to 280 cubic feet. They discharge rapidly through full-length, pneumatically actuated drop-bottom gates.
2. Mixing & Blending Equipment (Continuous)
Rotary Continuous Mixers
For long product runs, these mixers blend primary bulk ingredients and minor additives gently, rapidly, and dust-free. They feature fixed internal mixing flights within a rotating drum and stationary inlet/outlet ports. Typical residence times are just one to two minutes, making them ideal for high-volume mixing and liquid coating applications.
Variable-Intensity Continuous Blenders
Based on a horizontal cylindrical vessel with an infinitely adjustable single agitator, this blender provides versatile continuous mixing. It can operate at low speeds for gentle homogenizing and coating, or at high speeds for high-shear mixing and lump-breaking of dry materials, dense pastes, and slurries. High throughput is achieved with typical residence times of 20 to 30 seconds.
3. Size Reduction Equipment
Attrition Mills
Ideally suited for grinding fibrous and friable materials from coarse sizes down to 100 mesh. Material travels radially between a stationary disc and a rotating runner disc. The gap between these discs is adjustable via a hand wheel, providing extremely precise control over the final particle size.
HammerHead™ Hammer Mills
Designed to smash heavy volumes of friable and fibrous materials, these industrial-duty mills utilize hardened steel hammers rotating at speeds up to 270 MPH. Centrifugal force causes the pivoting hammers to strike material in mid-air and crush it against breaker plates until particles pass through a lower bed screen.

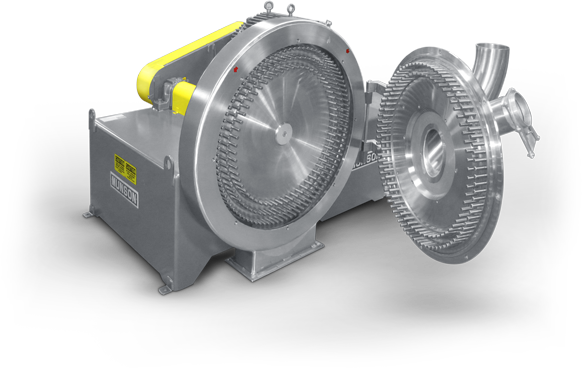

Centrifugal Impact Mills (Pin Mills)
Pin Mills pulverize friable materials into tight size ranges down to fine 400 mesh powders without using screens, hammers, or knives. Material travels from the center to the periphery between an outer stationary disc and an inner rotating disc, where centrifugal force causes particles to alternately impact alternating rows of pins thousands of times.
SCC™ Screen Classifying Cutters
Combining the shear of a knife cutter with the impact of a hammer mill, the SCC reduces hard, semi-hard, and fibrous materials down to 20 mesh. It utilizes a solid-mass rotor with a staggered, helical array of interconnected parallelogram cutters that shear materials against twin stationary bed knives with minimal heat and fines. Click for Details…
• Magnum™ Cutters
Ultra-high capacity cutters are available for massive-scale applications. Click for Details…
• Laboratory Mini Cutters
Offered for small-volume production. Click for Details…
• Security Destructors
Specialized high-velocity cutters engineered to confidently and securely destroy sensitive products, including circuit boards, photographic materials, bank notes, and pharmaceutical vials. Click for Details…
Rotary Knife Cutters
Operating with high shear and low impact, this cutter uses five rotating blades cutting against four stationary bed knives. It yields exceptionally clean-cut particles for spices, corn, roots, and plastics, cleanly cutting materials with little to no dust. Screens provide a 320-degree exposure area for high throughput.
CX Heavy Duty Cutters
Act as single-rotor, high-torque hogs designed to process exceptionally tough materials like synthetic rubber, wood, and solid detergent blocks.

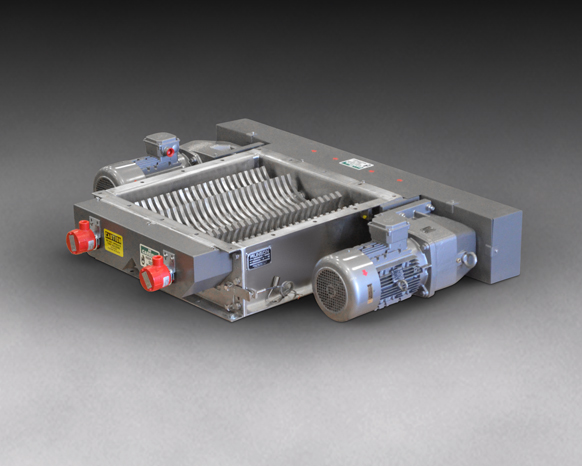

De-Clumper™ Lump Breakers
Placed inline or standalone, these compact machines reduce compacted or agglomerated materials back to their original flowability. They utilize rotating breaking heads to force lumpy materials through curved classifying bed screens with perforations from 1/32 inch to 2.5 inches.
Titan™ Shredders
Utilize dual, low-speed, high-torque rotors with extended cutter teeth to shear large volumes of industrial waste, plastics, fiberglass, and cardboard with minimal power consumption. Click for Details…
• Maxum™ Crushers
A heavy-duty crusher to break down oversized and problematic materials that standard shredders simply cannot handle. Click for Details…
4. Separation Equipment

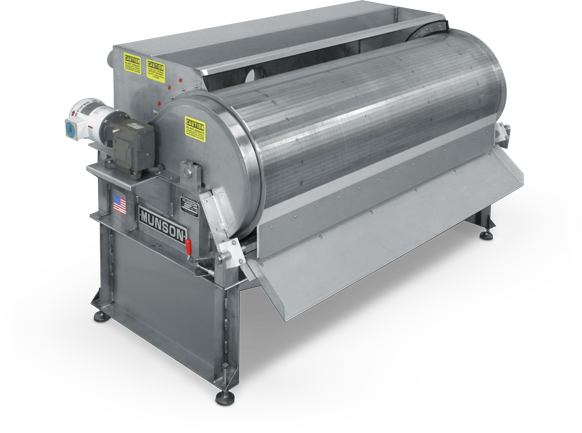

Rotating Drum Screens
Engineered for high-capacity liquid/solid separation, this machine efficiently removes solids from industrial and municipal wastewater or recovers solid product from process streams at rates up to 4,650 gallons per minute. It utilizes a horizontal wedgewire screen cylinder. Because the rotating drum is the only moving part, it prevents blinding and clogging while keeping maintenance costs low.

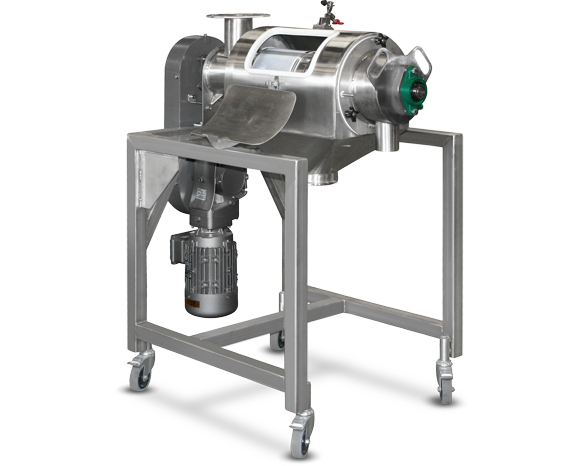

MUNSIFTER™ Centrifugal Sifters
Designed for high-throughput solid/solid separation, this sifter can scalp, sift, and de-agglomerate dry materials quietly and without vibration. Material is fed into a stationary horizontal screen cylinder while rotating internal paddles reliably propel on-size particles through the screen apertures, ejecting oversize materials out the discharge port.
Bag Dump Stations
Designed to capture airborne dust generated when emptying bags, boxes, or drums. By capturing floating particles instantly, these stations significantly improve operator safety, maintain strict plant hygiene, and eliminate costly material waste by keeping product inside the production line.
Ready to upgrade your processing line? As the official EU representative for Munson Machinery, Polimak is ready to help you select, customize, and install the perfect equipment for your facility. Contact Polimak today to request a quote or learn more!
